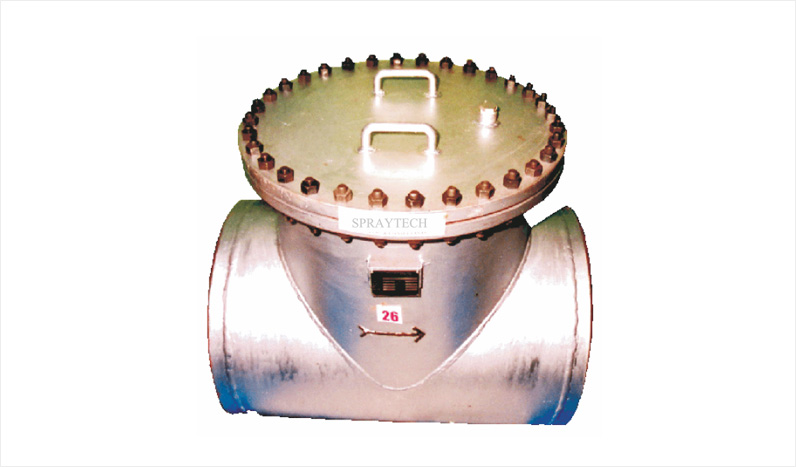

T Type Strainers Manufacturers



1) T type fabricated / forged

2) Conical / Temporary, fabricated

MOC in CS / SS / alloy steel / non - ferrous, CSRL for housings and SS304/ 316 / 304L/316L / MONEL/ PP / Brass for element.



Technical Specification

Flow rate capacity 5000 M³/Hr and above

Multiple basket Strainer housing can accommodate 1- 10 nos.

Double Cylinder strainer are used to increase the filtration area

Pleated Configuration Element is also available

Pressure drop @ clean 0.05 Kg/cm2 (g) and Change out

pressure drop @ 1.5 Kg/cm2 (g)



End connection

Flanged

SMS and Dairy Connection

Threaded

Socket Weld

Tri clover



Material of construction

Steel:- Carbon Steel, Mild Steel

Casting: All grades available

Stainless steel: SS 304,SS 304L,SS316, SS316L Duplex Material 2205

Lining on metals;- Rubber lining, PTFE lining, FRP lining



Application

Water Treatment Industries

Chemical Industries

Ink Paint and Dyes Industries

Food Beverages and Dairy

Refineries & petrochemicals

Paint shop

Cement & fertilizers Industries

Steel & Textiles Industries

Cooling towers & Automobiles



Sealing

Selected as per chemical compatibility of the application
